| Posted: Fri Apr 28th, 2006 12:08 PM |
|
1st Post |
Timberghozt
Board Founder
| Joined: | Fri Feb 11th, 2005 |
| Location: | Texas USA |
| Posts: | 7040 |
| Photo: | [Download] | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | 300 Winchester Magnum ... |
| Status: |
Offline
|
back to top
|
Any one building a Wildcat rifle or have one in the works?My next rifle is a .17 Rem, not a wildcat but one Ive always wanted.After that I`m thinking about a 6mmm-284 or maybe a 22-284.I already have the dies for a 22-284 as well as Max`s load data for his rifle.Rifle components could be duplicated very closely.His targets are extremely impressive......Might as well give it a try I guess.
Lets hear what you have on the burner...
____________________
"He who fights with monsters might take care, lest he thereby become a monster; For if you gaze for long into an abyss, the abyss gazes also into you." - F.Nietzche
|
| Posted: Fri Apr 28th, 2006 12:38 PM |
|
2nd Post |
Charley
Board Founder
| Joined: | Fri Sep 9th, 2005 |
| Location: | San Antonio, Texas USA |
| Posts: | 6133 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | all of them |
| Status: |
Offline
|
back to top
|
Not really a wildcat anymore because of A-Square, but I'm building a .338/06.
____________________
STOP OBAMUNISM NOW!
|
| Posted: Fri Apr 28th, 2006 09:31 PM |
|
3rd Post |
greysmoke
Super Moderator
| Joined: | Tue Mar 15th, 2005 |
| Location: | Port Elizabeth, South Africa |
| Posts: | 488 |
| Photo: | | | Are you a handloader?: | | | Favorite type of cartridge to load?: | | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
Hey Charley
How is that project coming along?
Would like to see some more pics. Decided on a stock for it as yet?
____________________
Grey Smoke
"A fanatic is one who can't change his mind and won't change the subject."
-Winston Churchill
|
| Posted: Tue May 2nd, 2006 11:26 AM |
|
4th Post |
rifleman
HB Pro Staff
| Joined: | Tue Nov 29th, 2005 |
| Location: | Hazleton, Pennsylvania USA |
| Posts: | 62 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
Besides working on my 8mm Grizzly that I started last year only to be knocked out of testing by a torn rotator cuff, I am working on an Encore in .243AI.
It is a EABCO custom barrel, 26" 1 in 8" twist for shooting heavy bullets in the 105gr. and up. I am just fireforming cases now but hope to get them all done this week if the weather helps.
Jude
Last edited on Tue May 2nd, 2006 11:40 AM by rifleman
____________________
Psalms 147:10:11
Endowment Member NRA, GCIU/IBT Teamsters, F.O.P. Lodge #38.
|
| Posted: Tue May 2nd, 2006 11:32 AM |
|
5th Post |
Timberghozt
Board Founder
| Joined: | Fri Feb 11th, 2005 |
| Location: | Texas USA |
| Posts: | 7040 |
| Photo: | [Download] | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | 300 Winchester Magnum ... |
| Status: |
Offline
|
back to top
|
Very nice rifleman..Very nice.243 Ackley..that oughta be a sweet rascal...
____________________
"He who fights with monsters might take care, lest he thereby become a monster; For if you gaze for long into an abyss, the abyss gazes also into you." - F.Nietzche
|
| Posted: Tue May 2nd, 2006 01:33 PM |
|
6th Post |
sglshotkw
HB Pro Staff
| Joined: | Sat Jul 9th, 2005 |
| Location: | Bloomington, Minnesota |
| Posts: | 83 |
| Photo: | | | Are you a handloader?: | | | Favorite type of cartridge to load?: | | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|

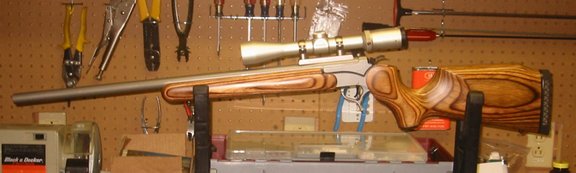

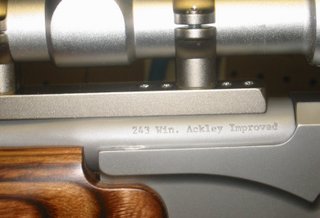

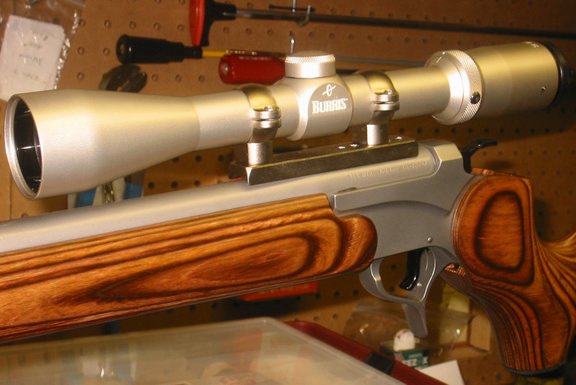

Had a 250 AI built for my hunting pistol Encore
Also been thinking of having built a 19-223 by Calhoon or I was playing with some 221 brass and necked a couple up to 25 cal but not sure if enough case capacity to fire them off well.
____________________
KW
|
| Posted: Thu May 4th, 2006 01:38 PM |
|
7th Post |
Big John
Handloading Master
| Joined: | Mon May 23rd, 2005 |
| Location: | New York USA |
| Posts: | 201 |
| Photo: | | | Are you a handloader?: | | | Favorite type of cartridge to load?: | | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
I was just thinking the other day I have a couple of 105 howitzer shells thought about necking them down to 22-250, getting the chamber right may be a problem and I think recoil may be an issue also.
____________________
http://www.northeasternoutdoors.com/firearms.htm
|
| Posted: Thu May 4th, 2006 10:34 PM |
|
8th Post |
rifleman
HB Pro Staff
| Joined: | Tue Nov 29th, 2005 |
| Location: | Hazleton, Pennsylvania USA |
| Posts: | 62 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
Thank-you for the compliment Timberghozt.
sglshotkw, very nice Encore pistol. Who made your barrel? I should have bought my Encore in the handgun form as I could have had the best of both worlds with the T/C.
Jude
____________________
Psalms 147:10:11
Endowment Member NRA, GCIU/IBT Teamsters, F.O.P. Lodge #38.
|
| Posted: Sat May 6th, 2006 02:30 PM |
|
9th Post |
sglshotkw
HB Pro Staff
| Joined: | Sat Jul 9th, 2005 |
| Location: | Bloomington, Minnesota |
| Posts: | 83 |
| Photo: | | | Are you a handloader?: | | | Favorite type of cartridge to load?: | | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
My barrel was made by On Targetr Technologies http://www.ottllc.com/
I have 3 of his barrels now (2 Encore and 1 Savage Striker) the best chambers around in my opinion
Last edited on Sat May 6th, 2006 02:32 PM by sglshotkw
____________________
KW
|
| Posted: Fri May 12th, 2006 07:03 AM |
|
10th Post |
| Posted: Tue May 16th, 2006 04:40 AM |
|
11th Post |
rifleman
HB Pro Staff
| Joined: | Tue Nov 29th, 2005 |
| Location: | Hazleton, Pennsylvania USA |
| Posts: | 62 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
sglshotkw, I have heard of OTT and was planning on using them for a 6.5mm project I want to do in the future. I am hearing a lot of good reports and wouldn't hesitate to have my chamber done by EDM. I had a custom die set made by Hornady and that is how they are making their dies.
Jude
____________________
Psalms 147:10:11
Endowment Member NRA, GCIU/IBT Teamsters, F.O.P. Lodge #38.
|
| Posted: Mon May 29th, 2006 05:55 PM |
|
12th Post |
paul
HB Full Member
| Joined: | Sat Apr 1st, 2006 |
| Location: | Waverly, West Virginia USA |
| Posts: | 1 |
| Photo: | | | Are you a handloader?: | | | Favorite type of cartridge to load?: | | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
I am waiting presently for my custom barrel from Bullberry for my T/C Encore in the 243 Ackley Improved.......
|
| Posted: Tue May 30th, 2006 08:18 AM |
|
13th Post |
rifleman
HB Pro Staff
| Joined: | Tue Nov 29th, 2005 |
| Location: | Hazleton, Pennsylvania USA |
| Posts: | 62 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
Hi Paul, welcome aboard! Yes, I have heard many good reports on Bullberry barrels! Let us know how it shoots when you receive it.
Jude
____________________
Psalms 147:10:11
Endowment Member NRA, GCIU/IBT Teamsters, F.O.P. Lodge #38.
|
Fiftydriver
Super Moderator
| Joined: | Thu Feb 10th, 2005 |
| Location: | Fort Shaw, Montana USA |
| Posts: | 153 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | 338 Allen Magnum, for today anyway!!!!! ... |
| Status: |
Offline
|
back to top
|
Well, I have several irons in the fire currently. First off and pretty much ready to roll is my 224 Allen Mag. I have it built and have done some testing but got the neck to tight and do not want to turn necks so I am waiting on a neck reamer to open it up to the proper dimension so no turning is needed.
On the left are two 22-270 WSM rounds ready for fireforming, in the middle two formed 224 AM cases and a 22-250 AI on the right for size comparision.
Here is the rifle, trued Rem 700, 27" Lilja 1-7 3 groove and HS Precision varmint stock. The 224 AM is really far to large in capacity for any conventional 224 bullet weights. Even the 80 gr pills are to light for this case capacity so Richard Graves, owner or Wildcat Bullets made me up some of his 100 and 107 gr ULD RBBTs. During intial testing it looks like 3400 fps will be reachable with these bullet weights.
This round will be totally suitable for game up to deer. The main design purpose of the round is to give the coyote hunter a single rifle that will offer 0 to 800 yard reach and and not destroy pelts at closer range impacts and do so in a sub 10 lb rifle with low recoil.
Next up will be my 510 Allen Mag, other end of the spectrum with this big girl. This is a 50 BMG case basically improved. Case capacity will be roughly 45 gr larger then the standard BMG. Again, not the post practical of rounds but this will be an experiment in flat out Horse Power. I am looking to drive a 750 gr bullet to a full 3000 fps in a 35" barrel. Better yet, an 835 gr at 2800 fps and a 1000 gr ULD RBBT to 2550 fps.
The rifle is will be based on an Armalite AR-50 receiver and stock with a Liljs 1.750" straight cylinder 35" barrel fitted to it.
Here is a pic of the receiver compared to a long action Rem 700, a bit bigger!!!
I have everything to assemble this rifle except a set of pilot bushing of the proper size to fit the bore for chambering and crowning. Once they get here I will assemble her and start abusing myself!!!
After that I am also going to be designing a much more practical 50 cal round designed for tactical and match use. The 50 BMG 1000 yard match shooters generally load a 750 to 800 gr bullet to 2450 to 2550 fps for best accuracy and consistancy.
My 50 Allen Bench Rest will match these numbers but do it with 60 to 70 gr less powder and in a much smaller case which will work at much higher chamber pressures then the 50 BMG. As such it will burn much cleaner and offer more consistant velocities for extreme range consistancy.
Also, the 50ABR will be able to be chambered in receivers such as the BAT Model M so the receiver alone will be a full $1000 cheaper then a BMG receiver.
Should be interesting, that will come out this summer. Also getting ready to design my 375 and 458 Allen Magnums as well, both based on the 338 Allen Mag necked up to 375 and 458.
Staying busy!!
Kirby Allen(50)
____________________
"If it ain't accurate, lets make it that way!"
|
rifleman
HB Pro Staff
| Joined: | Tue Nov 29th, 2005 |
| Location: | Hazleton, Pennsylvania USA |
| Posts: | 62 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
I also have another project going besides the 8mm Grizzly and .243AI. It is a .338-06 JDJ with a new SSK barrel. So far I have fired a few rounds through it to break-in the barrel and hope to get out and start testing as soon as I get more cases fireformed.
Kirby, your .224 Allen is pretty cool! I load for the .25 WSM and also use .270 ESM cases to form.
How is the overbore necking down to .22 caliber? I have had very good results with RL-25 and Retumbo with my overbore. My 8mm Grizzly is based on a 404 Jeffery's case. In testing so far, I have beaten easily the 8mm Remington Mag. I have 2 other versions I plan on building a .375 Grizzly and a 416 Grizzly as soon as I find a few actions.
Jude
____________________
Psalms 147:10:11
Endowment Member NRA, GCIU/IBT Teamsters, F.O.P. Lodge #38.
|
Fiftydriver
Super Moderator
| Joined: | Thu Feb 10th, 2005 |
| Location: | Fort Shaw, Montana USA |
| Posts: | 153 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | 338 Allen Magnum, for today anyway!!!!! ... |
| Status: |
Offline
|
back to top
|
As expected the 224 AM is really overbored for this bore diameter. As such, the only real viable bullets to use are the very long and heavy Wildcat 100 and 107 gr ULD RBBTs. With these bullets the round actually performs quite well but you have to use powders such as WC872 or the new H-US869. Any stick powders will result in powder bridging with this little monster.
To give you an idea of the length of these 22 cal bullets, check this out:
That is a 7mm 140 gr Accubond on the left and a 160 gr 7mm Accubond on the right. The skinny guy in the middle is the 100 gr ULD RBBT wildcat Bullet. Its actually a few thou longer then the 140 gr bullet!!!
BC is in the .600-.625 range with this bullet and with a velocity potential around 3400 fps it will make the trajectory of a 30-378 look a little silly, just have to finish testing to see where she performs the best.
Kirby Allen(50)
____________________
"If it ain't accurate, lets make it that way!"
|
| Posted: Sat Jun 10th, 2006 05:20 PM |
|
17th Post |
Vincent
HB Pro Staff
| Joined: | Thu Jun 8th, 2006 |
| Location: | Inglewood, Tennessee USA |
| Posts: | 65 |
| Photo: | | | Are you a handloader?: | | | Favorite type of cartridge to load?: | | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
sglshotkw wrote: Had a 250 AI built for my hunting pistol Encore
Also been thinking of having built a 19-223 by Calhoon or I was playing with some 221 brass and necked a couple up to 25 cal but not sure if enough case capacity to fire them off well.
I think your 25-221 would be an excellent little wildcat. I have about 25 years experience with the .256 Win Magnum an it is one of my all time favorite rounds. In some ways your 25-221 is just a rimless version of the .256 with a little bit more capacity maybe. I think you would be very happy with it. The .256 was in a 10" Contender barrel and became my favorite. I was also shooting a .30 Herret 14" and a 22 K Hornet which were also fun but the .256 was just such a balanced little round. In the end it was a pain to form cases for (MUCH harder than the .30 Herret) but still worth the trouble. I hope you build your 25-221. Unfortunately all mine were sold at a very bad time in life.
____________________
God created man and women. Sam Colt made them equal!
|
| Posted: Sun Jun 11th, 2006 01:09 AM |
|
18th Post |
sglshotkw
HB Pro Staff
| Joined: | Sat Jul 9th, 2005 |
| Location: | Bloomington, Minnesota |
| Posts: | 83 |
| Photo: | | | Are you a handloader?: | | | Favorite type of cartridge to load?: | | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
Vincent wrote: Unfortunately all mine were sold at a very bad time in life.
Sorry to here that you had to get rid of them.
I'm will be playing with the 25/221 probally this winter right now I bought a 357 Mag Contender barrel and gonna play with shooting some steel the rest of the summer. Like I need another thing to do....lol
____________________
KW
|
Joe O
HB Full Member
| Joined: | Sat Sep 19th, 2009 |
| Location: | Belton, USA |
| Posts: | 3 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | 243 WIN,45 ACP,45 Colt,38 SP,22-250,ALL Shotgun Ga's ... |
| Status: |
Offline
|
back to top
|
Lets revive this one and bump it up.
I'm having Jim Hart build me a 243 Ackley Improved,on a Remington 700 short action,with a Jewel trigger and holland heavy lug.He'll mount a light Varmit barrel,
1.200" for 4"then straight taper to .875 @ 26"and install a Vais muzzle break,then pillar bed it in a Holland ,wood laminated heavy Varmit stock.Barrel and muzzel break will be straight contour,SS bead blasted,action and bolt matte.Metal trigger guard matte or SS bead blasted.Leupold 2 piece bases and Leupold 30mm rings,both Matte as will the scope.(no final decision on scope,but getting close). I wont see this new toy till Feb-Mar.
Joe O
Attachment: GPVRRifle.jpg (Downloaded 65 times)
____________________
Joe O
|
Rapier
HB Pro Staff
| Joined: | Mon Oct 29th, 2007 |
| Location: | Destin, Florida USA |
| Posts: | 188 |
| Photo: | | | Are you a handloader?: | Yes | | Favorite type of cartridge to load?: | I load everything! | | My favorite chambering is:: | |
| Status: |
Offline
|
back to top
|
I have received the 240 Laser gun, the dies and formed brass, including the new unfired 280 brass.
The 240 Laser is similar in looks only, to a 280 AI necked to 6mm. It is a 6mmx280 with the body blown out, sholder moved forward .250 inches and the shoulder angle changed to 45 degrees. It can not be made from 06 brass without having brass that is too short, so it is not a 6mm x 06.
I have loaded up some 100s with 4831 as I do not have any H-870 left and only a wee bit, about 1/4 pound, of 8700 which is same, same. The 8700 would move the 85s out at about 4,100 fps. I am going to use about 20 of the 100s to get the scope centered and the barrel broken in with sweet shooter, as is my practice with all of my guns.
The gun has not been shot since about 2002. I had the gun setting in the corner with the bore filled with Shooters Choice for the last two weeks. Crud poured out, like black India Ink, without any chunks, so I got the old copper disolved in total. With a tight patch, the jig now spins the patch to reveal a 1-8.5 or 1-9 twist barrel.
The gun is a pre 64 M-70 Action, with stainless guncoat, a Kreiger 28 inch SS barrel and a 3 inch long Shrewed style muzzle break. The trigger is standard M-70 with a 1.5 pound crisp let off, the mounts (rings and bases are Warne) the glass is an old 4x16x56 Hakko MPZ (Military & Police) tactical mill dot. It is said this gun has shot 4.5 inch groups at 1,000 meters with the Berger 105s so we will see, the proof is in the pudding.
We are now getting close to a range apointment. I do understand that this beastie migh be some what tougher than the 6.5x06 for muzzle blast. The 6.5x06 is just like the 264 Winny, it will clear a range in short order, especially with a max load of H-322 and an 85gr HP at 3,800. Ear bleed city.....
I bushhogged a place on a hill at the farm to make a 500 yard range. The impact area is down a power line and across a creek, into a facing hill side. So we are getting close. Hum, it would be real interesting to plant a food plot on that hill side. Ah, first things first.
Best,
Ed
____________________
"who can afford so to cover his country with troops for its defense as that 10,000 men descending from the clouds might not in many places do an infinite deal of mischief before a force could be brought together to repel them?" Franklin
|
